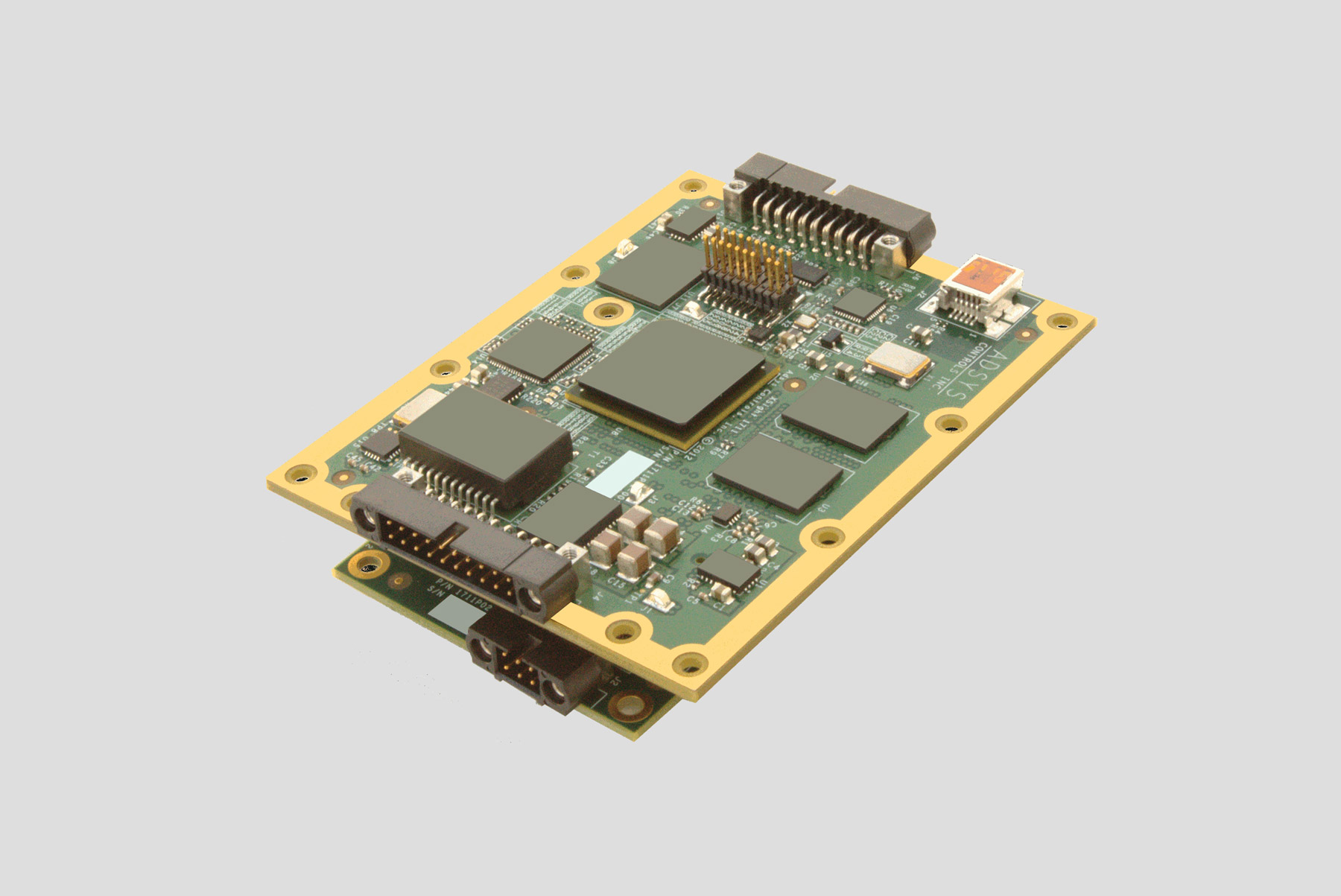

XSight Video 1711 Processing Module

The XSightTM HD Video Processing Module is a state-of-the-art solution for image processing. This low-SWaP module performs advanced features including multiple target tracking, image stabilization, video conversion, digital zoom and H.264 video encoding. Multi-camera image fusion can also be supported. XSight provides high horsepower vision solutions suitable for unmanned air vehicles, ground surveillance systems, robotics and other machine vision applications.

Request Information
  • HD Component Video In/Out
  • Multi-Target Tracking (Up to Ten Targets Simultaneously)
  • Digital Image/Video Stabilization
  • H.264/MPEG-4 Encoding (Bit-rate Adjustable via Command Interface)
  • Metadata Video Overlays
  • Small Size: 2.6” x 3.3” (Custom Manufacturing Available)
  • Low-Power Consumption: <7W
  • Weight: Under 80 grams
  • Video Resizing
  • Digital Zoom
  • Modular I/O
  • Pre/post Processing Capable
  • Multi-Camera Support
  • Target-of-Interest Picture-in-Picture (TOI-PIP)

Size, Weight and Power

  • 2.6” x 3.3” x 0.75”
  • Under 80 grams
  • Less than 7 Watts

Inputs / Outputs

  • HD Component Video In/Out 1080i, 1080p, 720p
  • NTSC Composite Video In/Out
  • HDMI In
  • RS-232 (3 Channels)
  • < 100 mseconds I/O Latency
  • Modular IO Cards can Support:
  • HD-SDI In/Out
  • Cameral Link In/Out
  • GigE Vision Video In/Out Environmental
  • -40° to 85°C Operating Environment

Video Processing

  • Image Stabilization
  • Target Tracking
  • Metadata Overlays
  • Digital Zoom
  • Video Signal Conversion

Advanced Features

  • H.264/MPEG-4 Encoding Bit Rate Adjustable
  • Multi-Target Tracking
  • Target-of-Interest Picture-in-Picture (TOI-PIP)

Optional Features

  • Multi-Camera/Sensor Image Fusion (EO/IR)
  • Integration with Adsys’ Gimbal Control Processor
  • Moving Target Indicators (MTI)

Applications

  • Manned/Unmanned
    • Aerial Vehicles
    • Ground Vehicles
    • Underwater Vehicles
  • Security and Surveillance Systems
  • Vision-based Navigation
  • Vision Guided Landing
  • Sense and Avoid
  • Border Patrol
  • Optical Tracking Systems
